Nidec variable speed drives are widely used across industrial applications including manufacturing equipment and automation systems. These drives rely on a combination of power electronics and control circuitry to regulate motor speed and torque. When faults occur within these systems, detailed diagnostics and component-level repairs can often restore the drive without the need for full replacement.

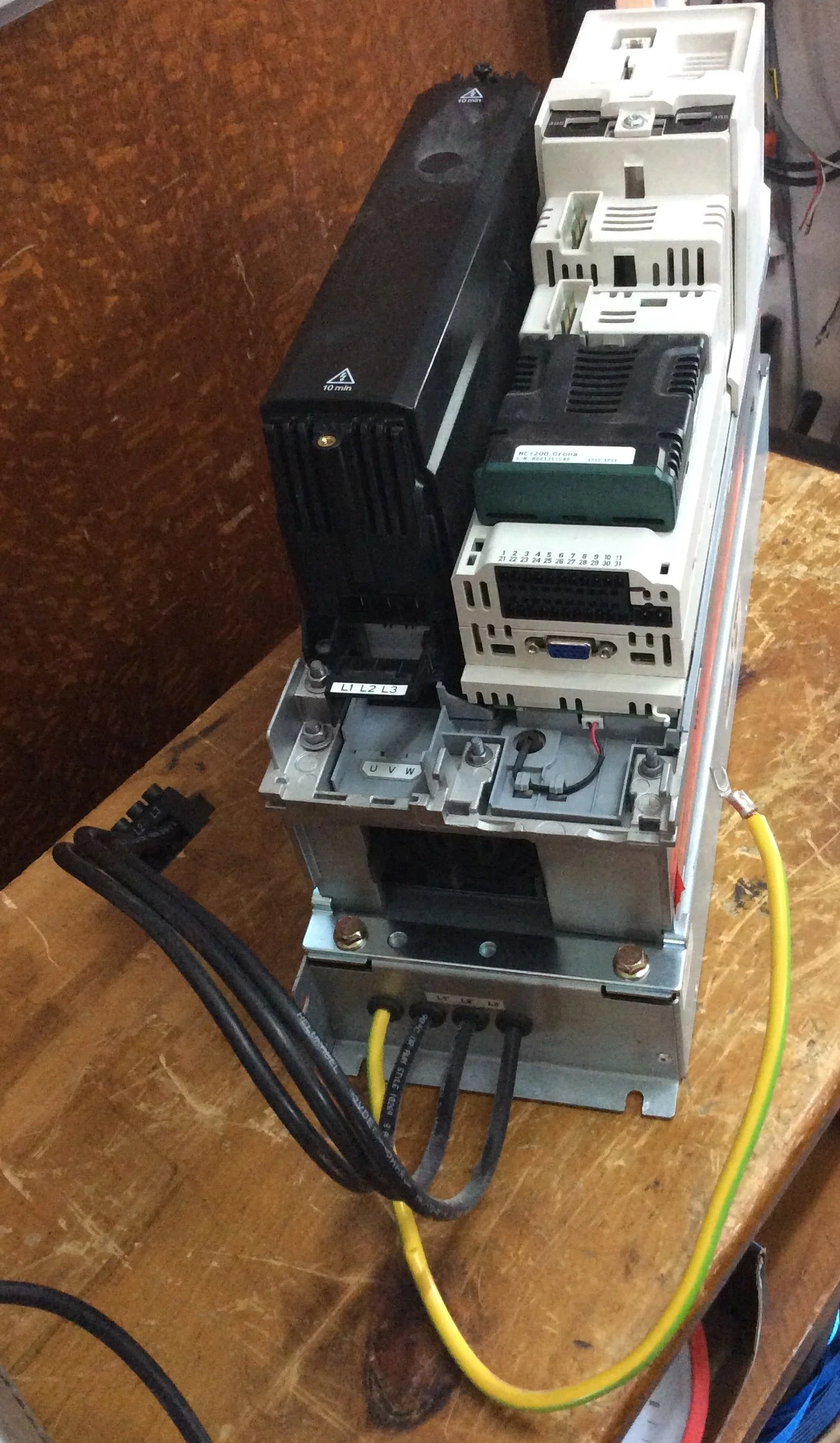

One repair involved a Nidec Unidrive SP2403 that was reported with an overload fault associated with the digital input and output circuitry. Initial testing focused on the main power components to rule out catastrophic failures. The rectifier and IGBT modules were tested for shorts and were confirmed to be operating normally. The drive was then powered using a 415-volt supply and connected to diagnostic software so that the existing parameters could be downloaded and monitored. The parameters were backed up and the drive was reset to factory defaults before attempting to run the unit using a potentiometer and external switch box. While the drive was able to detect incoming signals, the inhibit function would not disengage, preventing normal operation and suggesting a control circuit issue.

Further investigation involved removing the control board and testing the drive with a replacement control card. The original parameter set was backed up and the drive memory was cleared before loading standard parameters to allow basic operation testing. The drive still failed to operate correctly until the option module was replaced. Once the replacement module was installed the drive began functioning normally. The unit was left running for approximately thirty minutes to confirm stable operation. The original parameters were then reinstalled with minor adjustments required due to differences between parameter versions.

Another Nidec Unidrive repair involved investigation of the drive’s internal switch mode power supply and control electronics. After disassembly, the internal power supply circuits were tested to confirm the presence of stable control voltages used by the drive’s logic systems. Diagnostics included verifying DC bus conditions, inspecting the control board circuitry and checking the internal power supply components responsible for generating low voltage control rails.

Components within the power supply and control sections were inspected and replaced where necessary to restore proper operation of the drive’s internal electronics. After completing the repairs, the drive was reassembled and powered for functional testing. A test motor was connected and the drive was operated through a range of speeds to confirm stable frequency output and correct response to control inputs.

These repairs highlight how faults within Nidec Unidrive systems can originate from a range of areas including control boards, option modules, or internal power supply circuits. Through systematic diagnostics, parameter management and component-level repairs, many drives can be successfully restored to reliable operation, extending the life of industrial equipment and reducing the need for costly replacement drives.
